Brand Name : WelandSignal
Model Number : AFS2500
Certification : ROHS, CE
Place of Origin : SHAANXI, CHINA
MOQ : 1pc
Price : USD$249-269
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 20000pcs/month
Delivery Time : 3-7 working days
Packaging Details : Each has one small carton and 6pcs in one big carton
Light source : super bright LED
Color : Red, Green, Yellow, Blue, White
Material : Polycarbonate, Shock-resistance, anti-UV, Salt and dust self-protection
Base Material : Cast-aluminium
Working Mode : Flashing, steady on
Peak intensity : 2500cd medium intensity
Waterproof : IP68
Solar panel : 7W*4pcs mono solar panel
Battery : LifePO4 lithium battery 12.8V20AH
Mounting : 4pcs bolts only
Warranty : 3 years
OEM : color, flashing frequency, logo, carton design
Standard : FAA,ICAO Medium Intensity Obstruction Lighting
Application : tower, chimney ,tall buildings, bridge aviation obstruction lighting area
Our Medium Intensity Solar Powered Aviation Obstruction Lights to operate using free renewable energy from the sun. The system is designed as a compact all-in-one solar system, completely self-contained and easy to install. The efficient, compact design provides the end user with a lightweight, maintenance-free power solution that requires minimal surface area for installation. The system is ideal for remote airports where hard-wired infrastructure is not available. Each system is custom designed for a specific location to ensure years of trouble-free solar service.
NOTE:
KEY FEATURES
Intuitive setup and programming
Scalable, cost-effective design
Smart Energy Management
Durable, low maintenance
SPECIFICATIONS
Medium Intensity Solar Powered Aviation Obstruction Light
| |||
Mechanical Specifications | Electrical Specifications | ||
Peak Intensity
| 2500cd | Structure | Solar Integrated Design Bird deterrent conjoined with lens for not easy to break |
Working Model
| Flahing/Steady On | Lens Material | Polycarbonate |
Protect Level
| IP68 | Solar Panel | 7W *4pcs mono |
Energy Manage System (EMS)
| Intelligent Microprocessor | Storage Battery | 12.8V20AH LiFePO4 battery |
Temperature
| -45℃~70℃ | Function Optional | Synchronization |
Continuous Working Hours | 250hours | Mounting | 4 bolts M6 for Mounting |
Automatic Light Control (ALC)
| Turn on at night and off at daytime automatically | OEM Service | Color: Red, Green, Yellow, Blue, White Flashing frequency |
SIZE (mm)
INSTALLATIONS

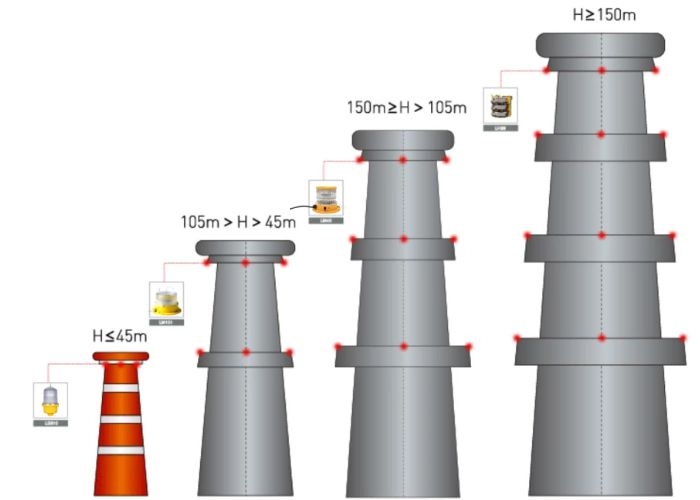

Aviation Obstruction Light for Chimney
Due to the particularity of the structure of the chimney itself, when setting up aviation obstruction lights, the obstruction lights installed at the top must be located between 1.5-3 meters at the top. When the height of the chimney is H > 150 meters, the obstruction lights can be installed at within 7.5 meters below the top of the chimney.
Reference standards: CAAC, ICAO, FAA "MH/T6012-2015" "MH5001-2013"
![]() |
Medium Intensity Chimney Obstruction Light IP68 Solar Powered Aviation Obstruction Light Images |
